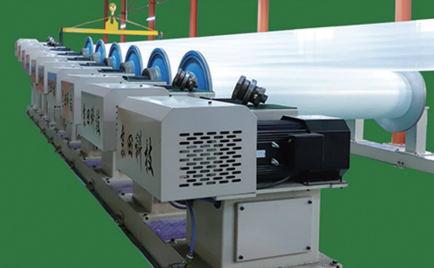

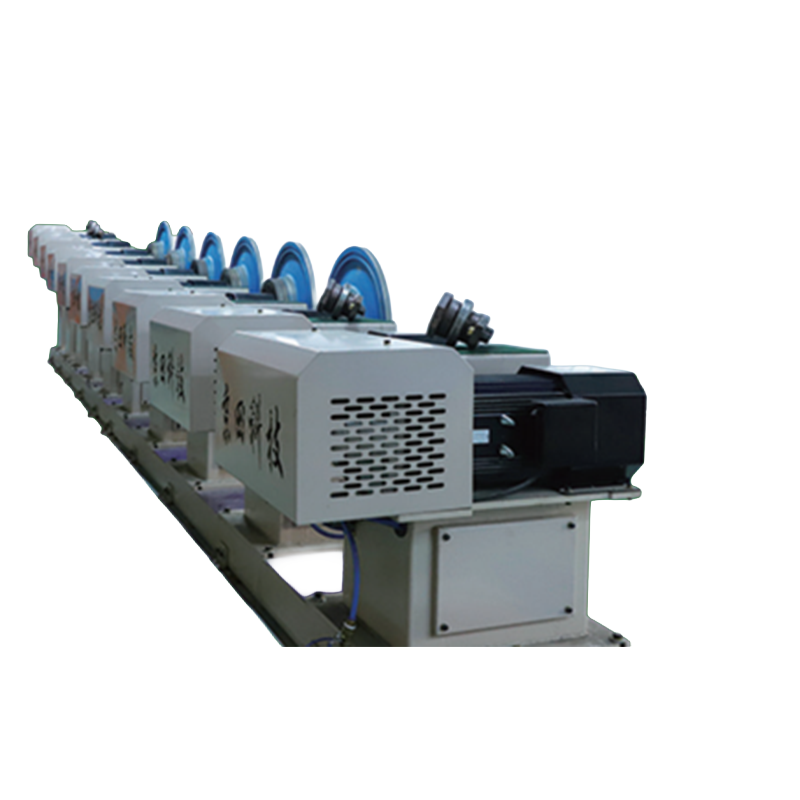

Textile Beaming Machine

General-Purpose Beaming for Many Products

This textile beaming machine is a general-purpose tool. Textile mills work with many yarn types and sizes. Some work with cotton. Some work with man-made fibers. Some work with blends. Buying a different beaming machine for each type costs too much. So we built this machine to be a multi-tasker. It works with cotton, linen, man-made fibers, and blends. It combines many beams into one high-quality beam for your next steps. Our customers often ask if it can really handle so many types. We tell them yes, and it does it well. This is the Textile Beaming Machine that fits your needs.

This machine has a strong frame made from steel plates. It is designed with finite element analysis. This ensures stable running. The tension system uses a servo motor and a high-precision sensor. It runs on its own. The accuracy is ±1.0 cN. Guide parts use a wear-resistant ceramic coating. The surface is smooth at Ra 0.1 μm. This cuts down yarn fuzz. The creel uses a modular design. You can combine 8 to 24 beams. It has a separate tension adjuster for each beam. This fits different yarn counts and types. This Textile Beaming Machine is built for flexibility.

This machine runs at a wide speed range. You can set it from 30 to 120 meters per minute. The beam can be up to 1 meter. It works well for cotton and man-made fibers alike. An online system watches the tension. The change is under ±1.5 cN. It makes a tension curve and a quality report for every beam. The machine has an auto beam change system. The screen is 15 inches. You can store 1000 settings inside. This supports quick product changes. The beam is straight, with an error under 0.1mm over 1 meter. The winding density error is under 2%. This machine meets ISO 11111-1:2016 and CE standards. Its electric parts follow IEC 60204-1. It also meets ISO 8116. At Jiangsu Global Jingtian, we give you one machine for many uses. This Textile Beaming Machine cuts your equipment cost and gives you a fast return.
