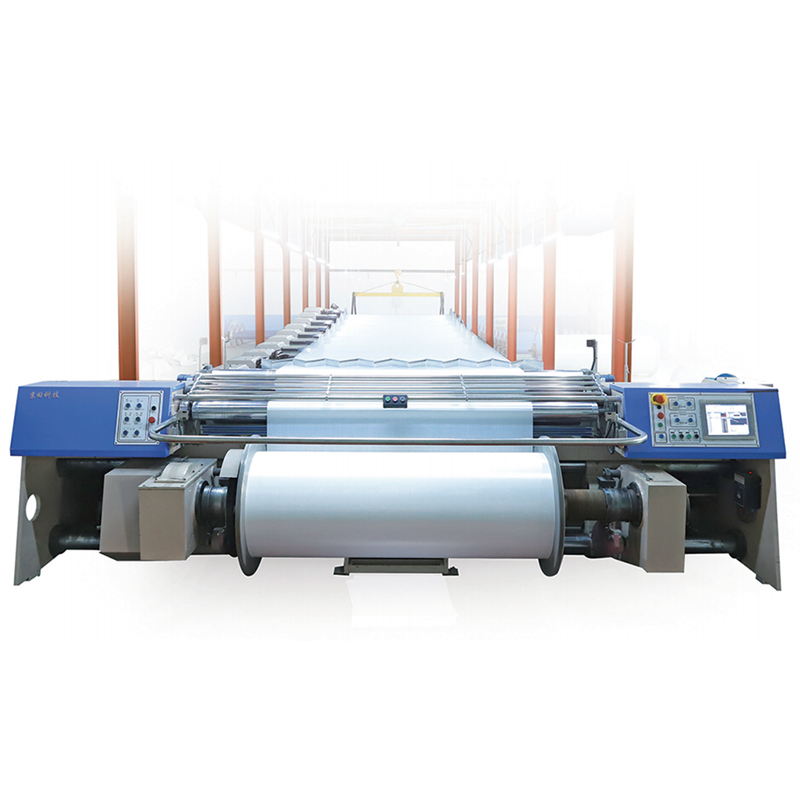

Beaming Machine for Industrial Fabric

Heavy-Duty Beaming Expert for Strong Fibers

Industrial fabrics need strong fibers. Think of geotextiles, airbags, and conveyor belts. These use glass fiber, carbon fiber, aramid, and high-strength polyester. These fibers are stiff and need high tension. Normal beaming machines cannot handle them. This beaming machine for industrial fabric is made just for these strong fibers. It has a heavy-duty build. It controls high tension with ease. The goal is to give you a quality combined beam for your industrial fabric. Our customers often ask how we manage such high tension. We tell them it starts with a reinforced frame. This is the Beaming Machine for Industrial Fabric that stands up to tough jobs.

This machine has a heavy frame. It is made from high-strength steel plates. Key parts are designed with finite element analysis. This ensures the machine can handle high loads. The tension system uses a servo motor and a high-precision sensor. It runs on its own. The accuracy is ±1.5 cN. This fits the high tension needs of industrial fibers. The guide rollers have a wear-resistant ceramic coating. The surface is smooth at Ra 0.2 μm. This cuts down friction on industrial fibers. The creel uses a heavy-duty modular design. You can combine 12 to 24 beams. Each beam has its own servo tension control. This Beaming Machine for Industrial Fabric is ready for heavy work.

The high-tension control system is a key feature. It keeps yarn tension in a range of 50 to 500 cN. The change is under ±2.5 cN. One client makes airbags. They need very tight tension. Our machine did the job well. An online system watches the tension. It makes a tension curve and a quality report for every beam. The machine has an auto beam change system. The screen is 15 inches. You can store 500 settings inside. The beam is straight, with an error under 0.1mm over 1 meter. The winding density error is under 2%. This machine meets ISO 11111-1:2016 and CE standards. Its electric parts follow IEC 60204-1. It also meets ASTM D4723 for industrial fabric prep. At Jiangsu Global Jingtian, we focus on high-strength fibers. This Beaming Machine for Industrial Fabric helps you cut breaks and raise quality.
