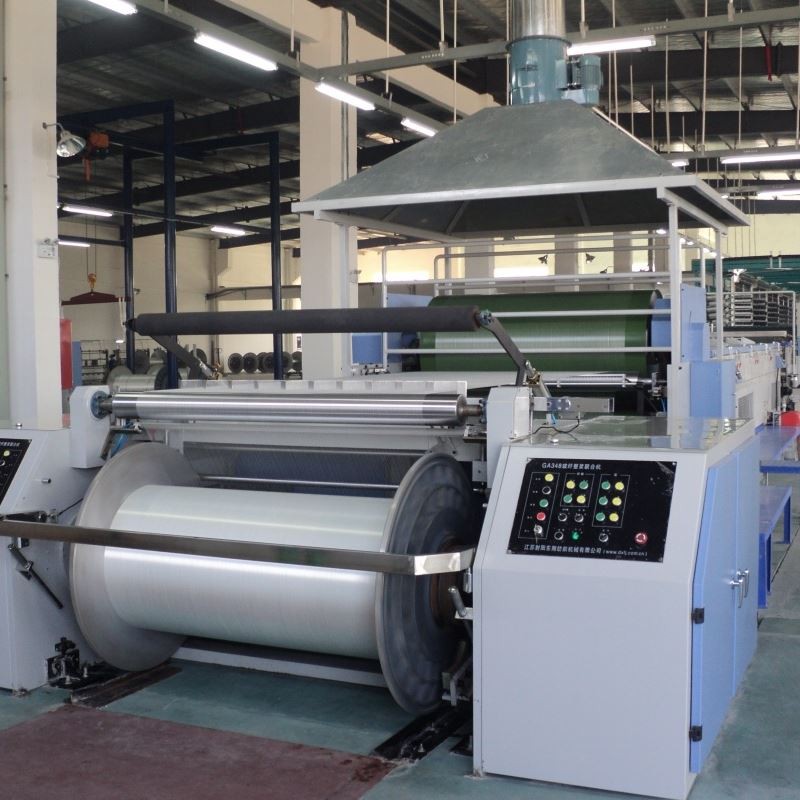

Sizing Machine for Glass Fiber

Gentle Care for Brittle Fibers

Glass fiber is strong but brittle. It does not like friction. Normal sizing machines can damage it. That leads to breaks. This glass fiber sizing machine is made just for glass fiber. We use a special low-tension system. The goal is simple: protect the fiber while adding size. It works well for electronic fabrics, industrial fabrics, and filter materials. These products need high quality. Our customers often ask how we handle such fragile fibers. We tell them it starts with our special tension control. This is the Sizing Machine for Glass Fiber that treats your fiber with care.

Glass fiber size can be hot and harsh. It can hurt normal machines. So we built this machine to resist it. The whole frame uses stainless steel and anti-corrosion coating. The size box and all contact parts are 316L stainless steel. This can handle the tough glass fiber size. The squeeze roller uses imported high-hardness rubber. Its hardness is Shore 85±3. The pressure can be set from 0 to 30 kN. An auto system checks the size viscosity. This keeps the size rate steady. The guide rollers have a Teflon coating. The friction is very low at just 0.1. This cuts down wear on the fiber. This Sizing Machine for Glass Fiber is made to last.

The key to this machine is low tension control. It keeps yarn tension in a tight range of 5 to 20 cN. The change is no more than ±1.5 cN. One client makes electronic fabrics. They need very tight tension. Our machine met their needs. We use a double-dip and double-squeeze process. This helps the size get into every glass fiber. The size pickup is even at over 95%. The beam can be up to 1 meter. The beam is straight, with an error of just 0.1mm over 1 meter. This machine meets ISO 11111-1:2016 and CE standards. It also meets IPC-4412B for glass fiber electronic fabrics. At Jiangsu Global Jingtian, we have deep know-how in glass fiber. Our clients call us the glass fiber experts. This Sizing Machine for Glass Fiber helps you make top-quality products.
