Sizing Machine for Industrial Fabric

Heavy-Duty Partner for Strong Fibers

Industrial fabrics need strong fibers. Think of geotextiles, airbags, and conveyor belts. These use glass fiber, carbon fiber, aramid, and high-strength polyester. These fibers are stiff and need high tension. Normal sizing machines cannot handle them. This sizing machine for industrial fabric is made just for these strong fibers. It has a heavy-duty build. It controls high tension with ease. The goal is to give you a quality sized beam for your industrial fabric. Our customers often ask how we manage such high tension. We tell them it starts with a reinforced frame. This is the Sizing Machine for Industrial Fabric that stands up to tough jobs.

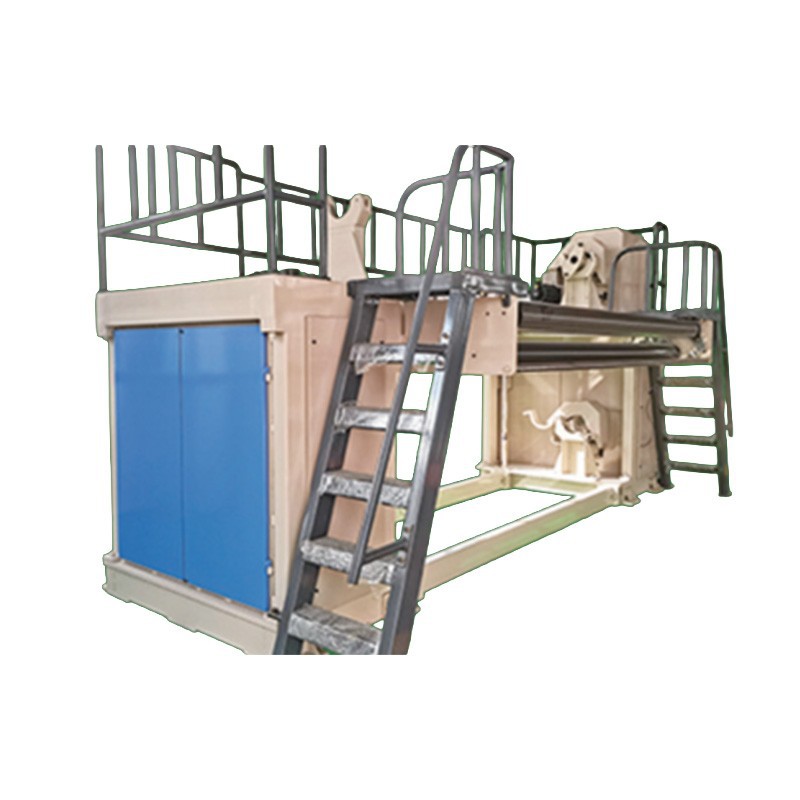

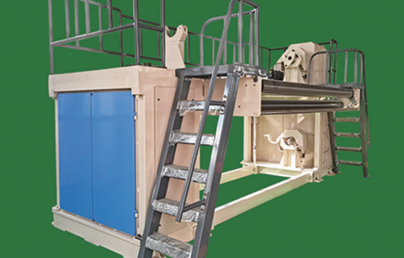

This machine has a heavy frame. It is made from high-strength steel plates. Key parts are designed with finite element analysis. This ensures the machine can handle high loads. The size box is 316L stainless steel. It uses a double-dip and double-squeeze system. The squeeze roller uses imported polyurethane. Its hardness is Shore 90±2. The pressure can be set from 0 to 50 kN. The size temperature is controlled to ±1℃. An auto system circulates and filters the size. The guide rollers have a wear-resistant ceramic coating. The surface is smooth at Ra 0.2 μm. This cuts down friction on industrial fibers. This Sizing Machine for Industrial Fabric is ready for heavy work.

The high-tension control system is a key feature. It keeps yarn tension in a range of 50 to 300 cN. The change is under ±2.0 cN. One client makes airbags. They need very tight tension. Our machine did the job well. An online system checks the size viscosity. The accuracy is ±0.5 seconds. This keeps the size rate even. The machine has an auto beam change system. The screen is 15 inches. You can store 500 settings inside. The beam is straight, with an error of just 0.1mm over 1 meter. The winding density is even at over 96%. This machine meets ISO 11111-1:2016 and CE standards. Its electric parts follow IEC 60204-1. It also meets ASTM D4723 for industrial fabric prep. At Jiangsu Global Jingtian, we focus on high-strength fibers. This Sizing Machine for Industrial Fabric helps you cut breaks and raise quality.
