Industrial fabrics need strong fibers. Think of geotextiles, airbags, and conveyor belts. These use glass fiber, carbon fiber, aramid, and high-strength polyester. These fibers are stiff and need high tension. Normal sizing machines cannot handle them. This sizing machine for industrial fabric is made just for these strong fibers. It has a heavy-duty build. It controls high tension with ease. The goal is to give you a quality sized beam for your industrial fabric. Our customers often ask how we manage such high tension. We tell them it starts with a reinforced frame. This is the Sizing Machine for Industrial Fabric that stands up to tough jobs.

Filament Sizing Machine

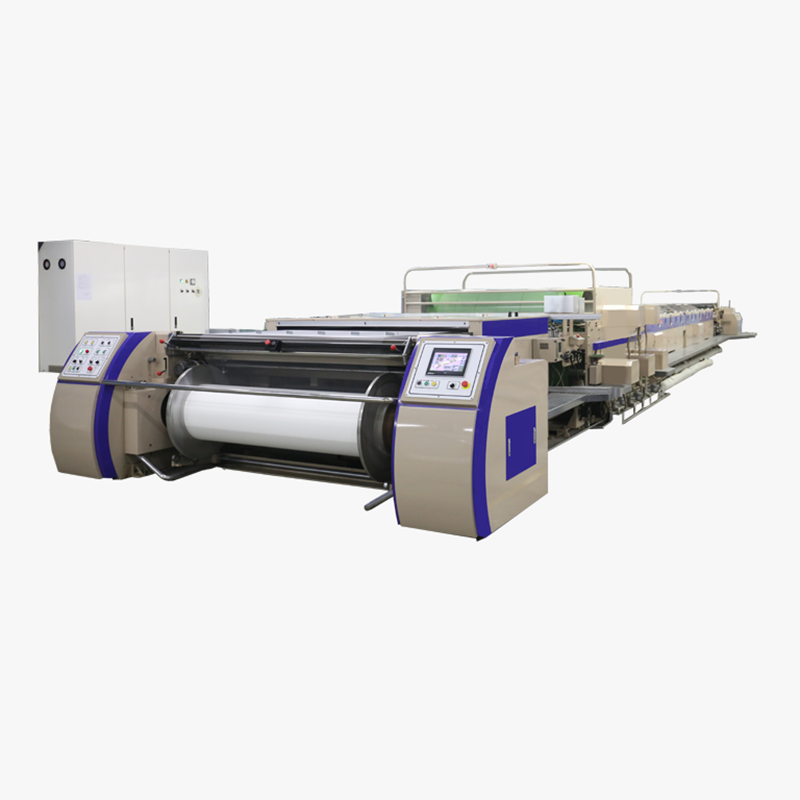

JT600-F type sizing machine adopts the most advanced electronic control procedure, to achieve 5kg~7Okg low tensioncontrol, especially suitable for 20D fine deniers, to meet the needs of customers for high-end products.

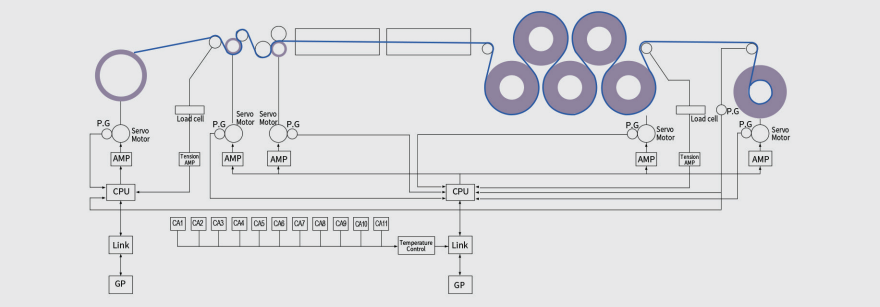

Precise low tension control and speed control system, can enable tensioncontrol range more stable.

Double-layer insulation door oven with JINGTIAN paten tare used, fit withlock sealing device, can achieve high speed and high temperature drying,while greatly reducing steam consumption, factory production costs greatlyreduced.

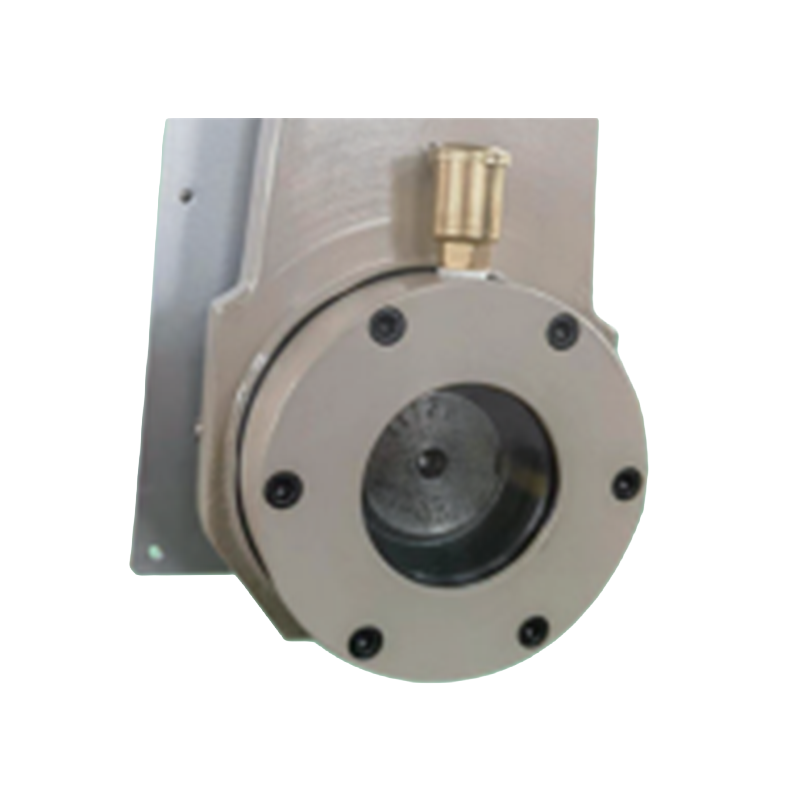

Drying cylinder: five p800 drying cylinders made of 10mm thick stainlesssteel, coated with Teflon and drive with positive sprocket. Both side bearingblock with oil pocket to ensure bearings always dip in oil.

Servo motor drive, with servo drive to achieve stepless speed change.

Safety protection: the front of the machine head is equipped with infrareddouble-head self-stop detector and safety railing, double safety protection toensure the safe operation of the operator.

Equipped with remote monitoring and fault diagnosis module, real-time0fault detection, real-time remote also can greatly improve the efficiency ofafter-sales service.

Mechanical-electrical integration intellectualization: machine action is controlledby Siemens PLC and operation on 12 inch touch screen. Process parametersetting, machine running status, interlock protection device, failure memoryalarm function, remote diagnosis and etc can be operated on the screen

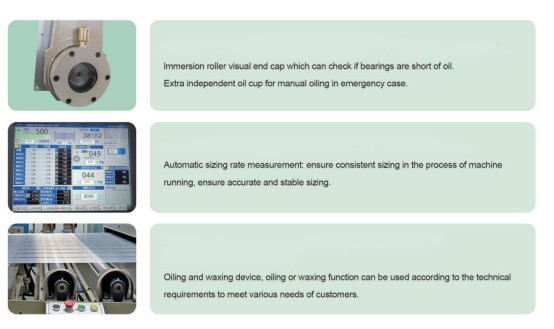

product-554-329 product-553-223
