Product Introduction

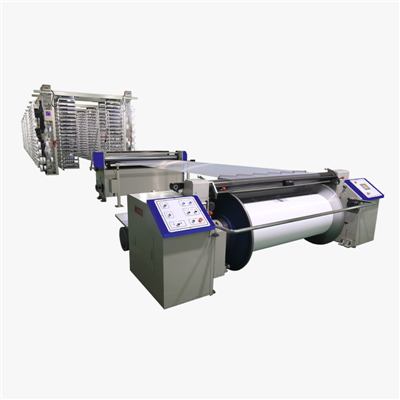

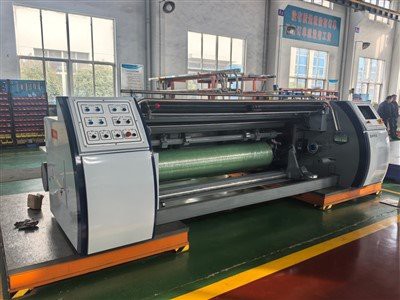

The GA339 series high-performance glass fiber warping machine is a majorupgraded product of the GA338 series technology developmentproject of the former National Textle Industry Association, mainly used for glass fiber One time warping of inorganic fibers such as basalt fiberand quartz fber. The successful development of this project has flled the domestic gap and greatly improved the warp quality of China'sinorganic fiber industry Efficiency is the ideal product for industry upgrading and replacement.The GA338 series high-performance glass fiber warping machine has multiple national patents and has passed the national level scientificand technological achievement appraisal The expert group unanimously believes that this product has reached the internationalleadinglevel The advanced and domestically leading technological level has great application and promotionvalue. Has successively won the titleof Jiangsu Province High tech Product, China Textile Industry Association Science and Technology Progress Award, and National Support

from the Home Innovation Fund.The GA339 series high-performance glass fiber warping machine is a majorupgraded product based on the original GA338 series. Basedon feedback from over 100 customers over the past 20 years, the original Significant upgrades have been made in equipment speed, weavingand winding mechanisms, upper and lower shaft mechanisms, main box structure, electrical control system, safety protection, and otheraspects, which have improved the efficiency, accuracy, and performance of the equipment Safe protection, more convenient operation and variety replacement.

Data You Can Rely On

Item	Value
Suitable yarn count range	5-1000tex
Width	1000－3600mm
Winding diameter	600－1000mm
Mechanical speed	4-200 m/min (divided into two models: 100 and 200 m/min)
Yarn tension	100-10000N
Single yarn tension	5-100g (determined by the single yarn tensioner)
Tube rack head	800-6000 (customized)
Tube frame distance	customized according to the specifications of the yarn tube

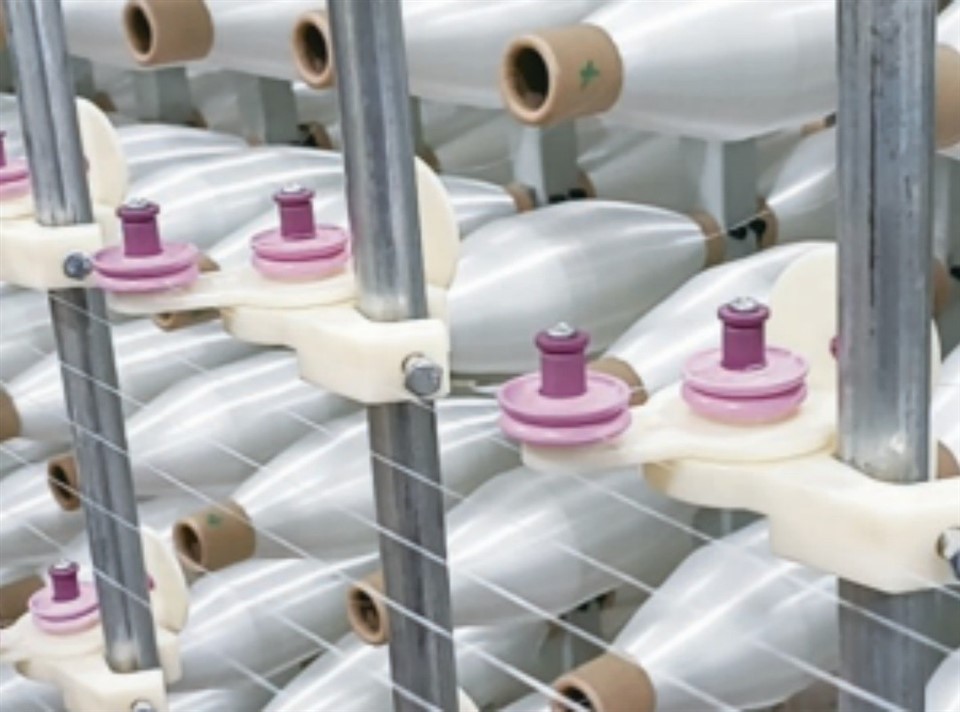

Tensioner type	selected according to the yarn count variety
Tube rack type	selected according to the variety and process
Power supply requirements	3-phase 380V, 50HZ, 20-70KVA3-phase 380V, 50HZ, 20-70KVA
Gas supply requirement	0.3L/S 0.6Mp

Application

Widely used in the inorganic fiber industry such as glassfiber, quartz fiber, basalt fiber, etc. for electronic cloth, electricalcloth, and wall Varieties such as cloth, mesh cloth, filter cloth,fishingrod cloth,fireproof cloth,insulation cloth, windowscreencloth, coating cloth, etc One time warping, paired with high-speed shuttleless weaving machines, significantly improvesweaving efficiency and quality!
