Single End Warping Machine

Master of Tension for Fine Filaments

This filament warping machine is made for polyester, nylon, and spandex. These fibers go into high-end clothes and sports fabrics. They are very sensitive. Even a small change in tension can leave a mark on the final cloth. So we made this machine a true tension master. It uses our best servo control and winding tech. Our clients often ask how we protect such fine threads. We tell them it is all about low friction. This is the Filament Warping Machine for perfect results.

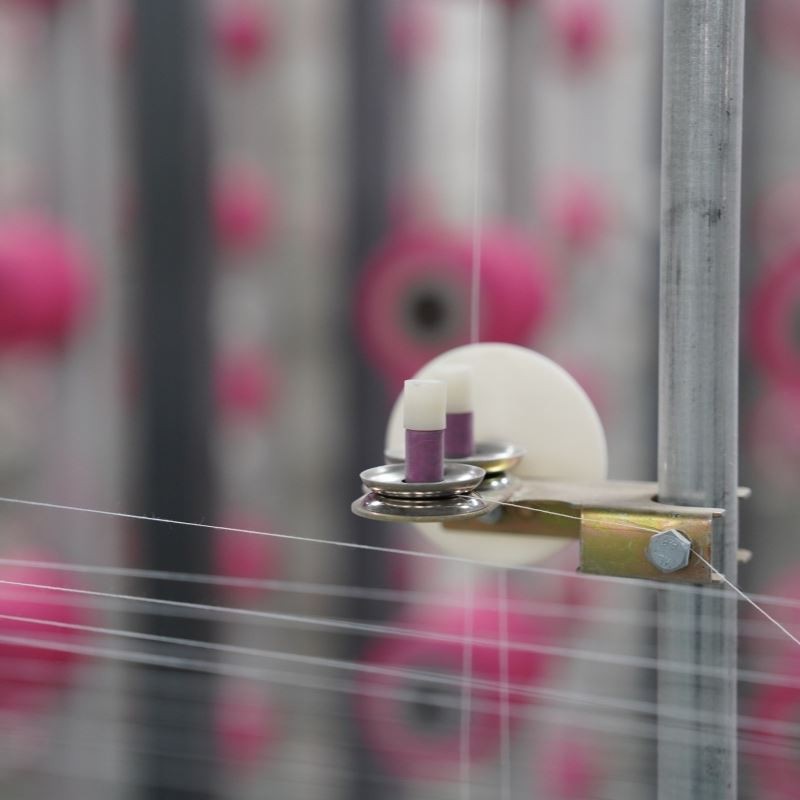

Friction is the enemy of fine filaments. So we use special materials on all yarn contact points. The surface is smoother than a mirror. Its roughness is only Ra 0.08 μm. This cuts down damage to your yarn. The tension system uses a servo motor and a non-contact sensor. It works on its own for each yarn. The accuracy is ±0.8 cN. This is true for 20D ultra-fine yarns and 600D thick yarns. The machine has an auto beam change and non-stop bobbin change. One client in Shaoxing saw a big boost in their workshop efficiency. This Filament Warping Machine delivers both speed and precision.

We add smart tools to help you track quality. An online system watches the tension in real time. It makes a tension curve and a quality report for every beam. Our clients love this. It makes the whole process clear. You can find the source of any problem later. The beam is very straight. The error is less than 0.08mm over 1 meter. The winding density error is under 1.5%. This machine meets ISO 11111-1:2016 and CE standards. It also follows ISO 8116 for filament warping. At Jiangsu Global Jingtian, we help you make better products. With this Filament Warping Machine, you can cut breakage by 20% and raise output by over 30%.
