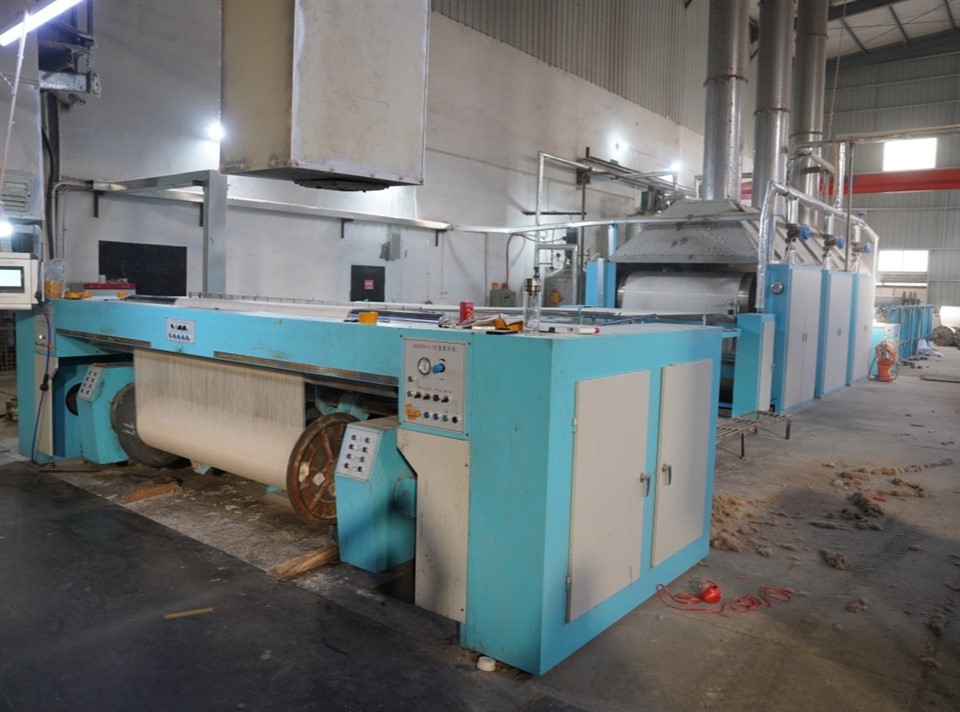

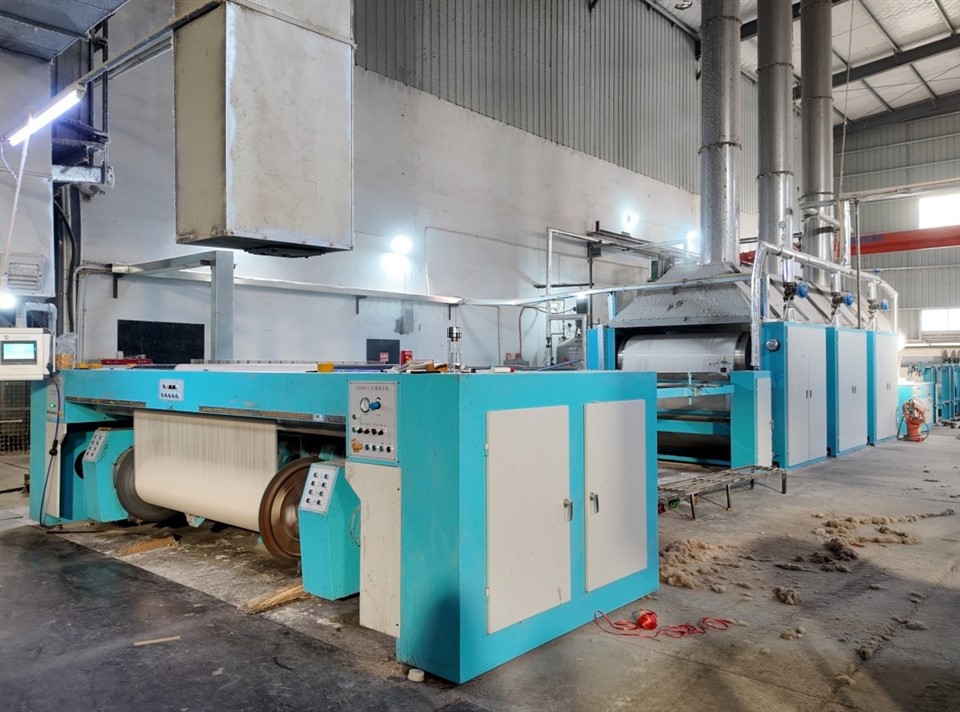

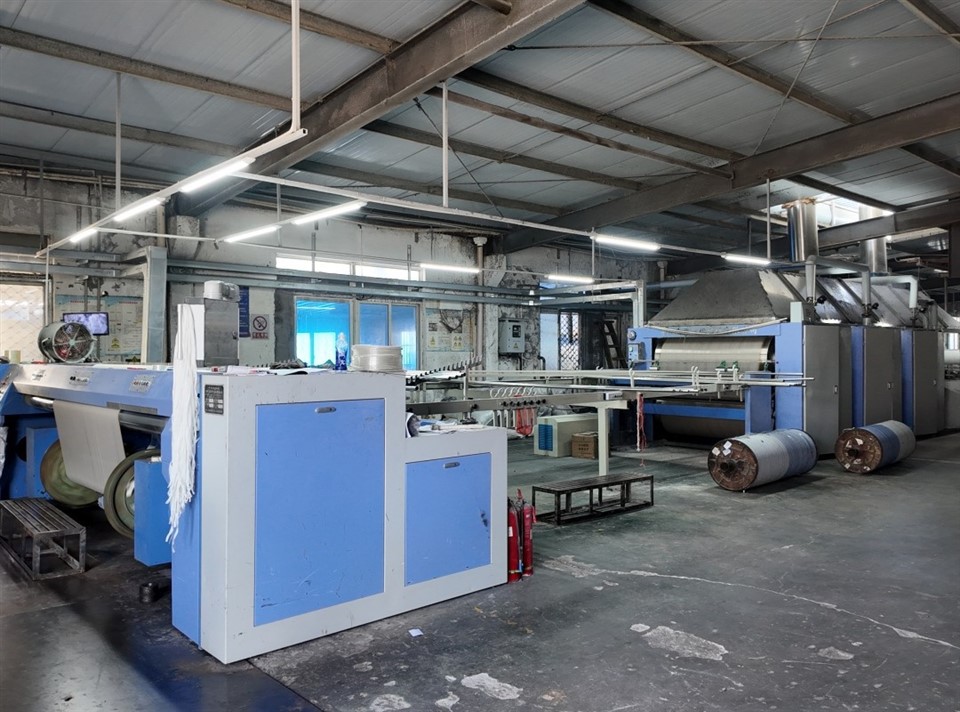

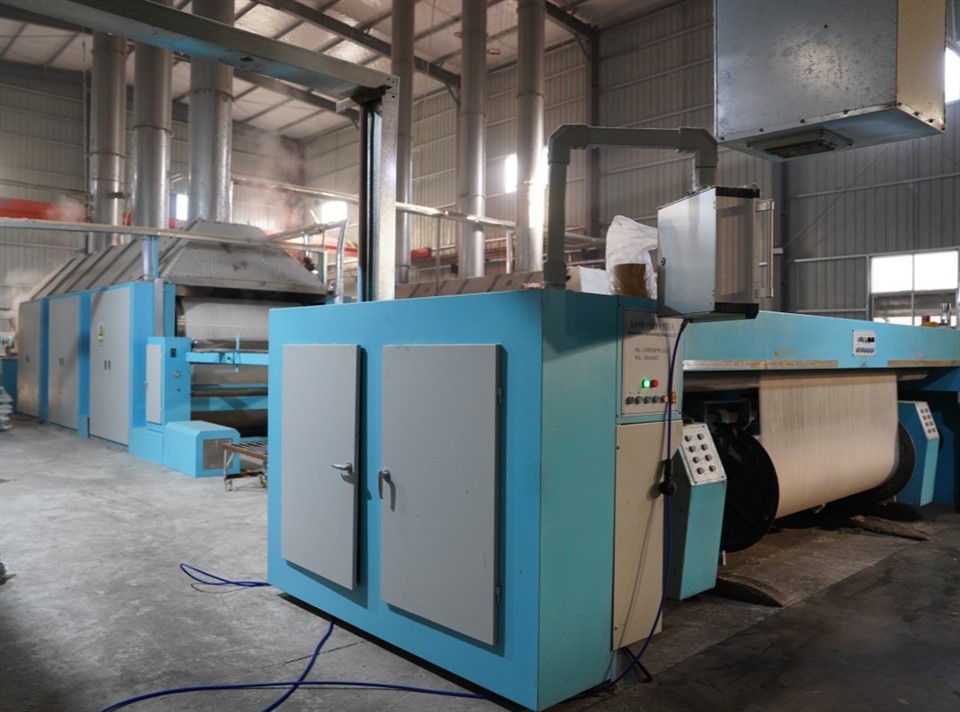

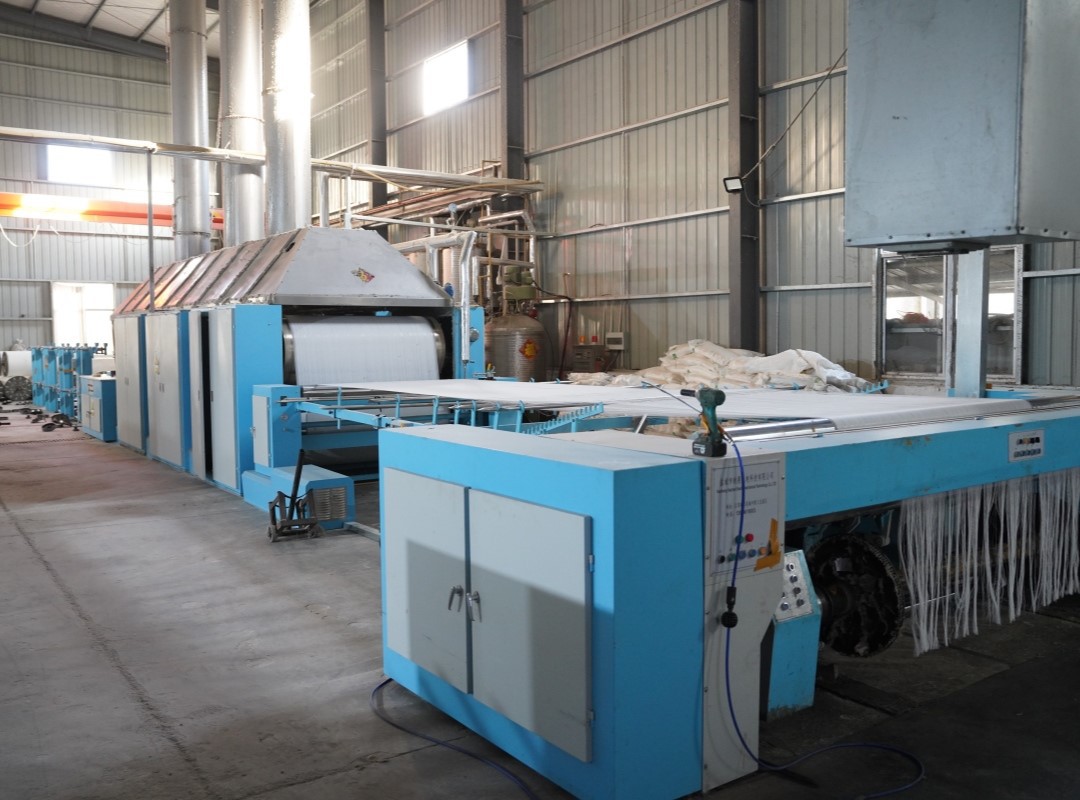

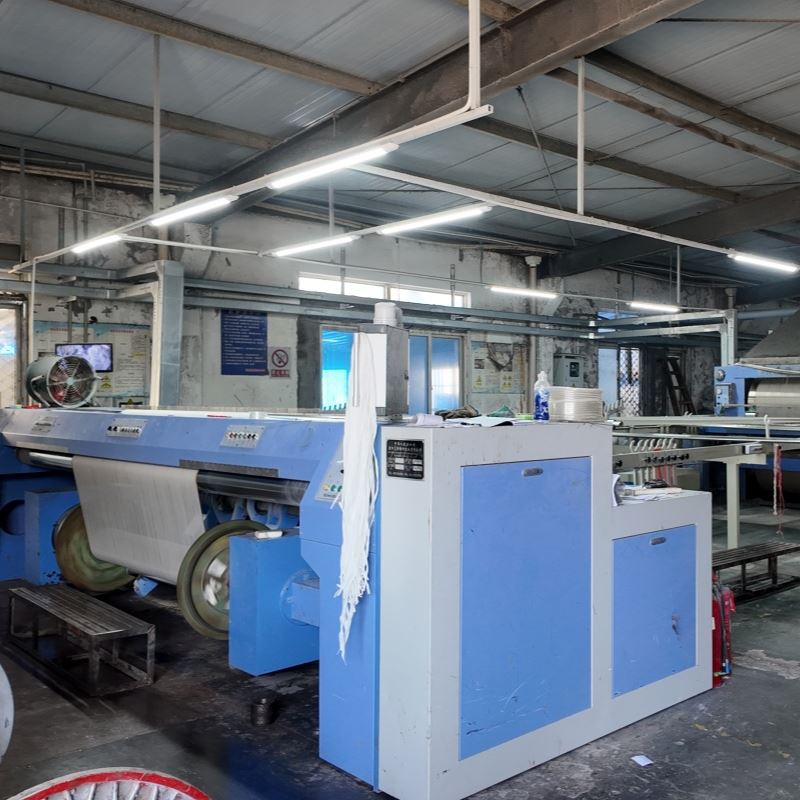

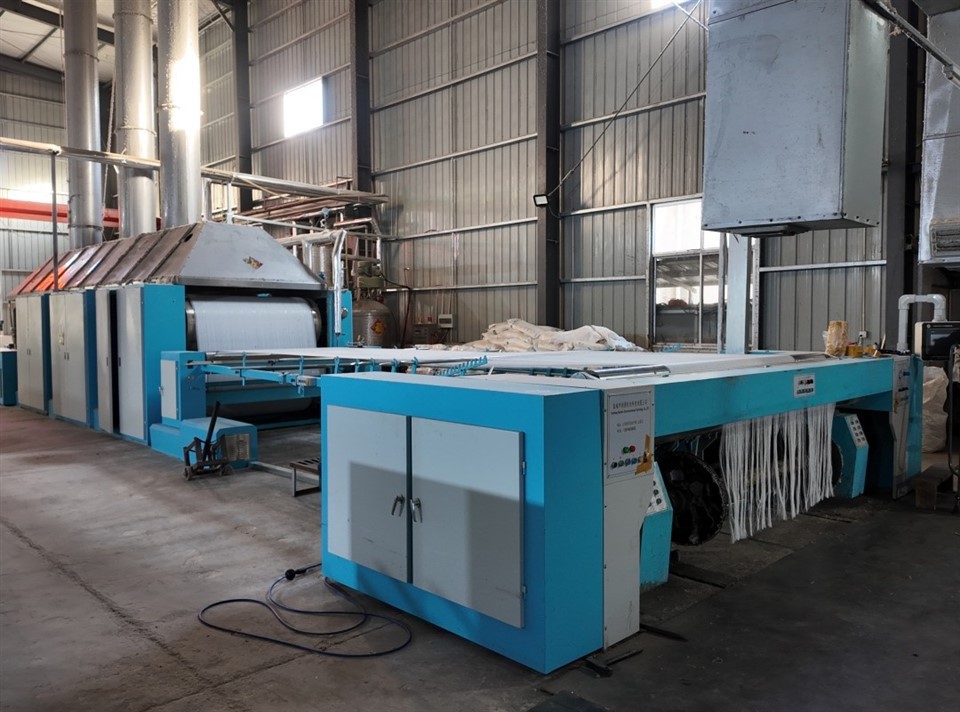

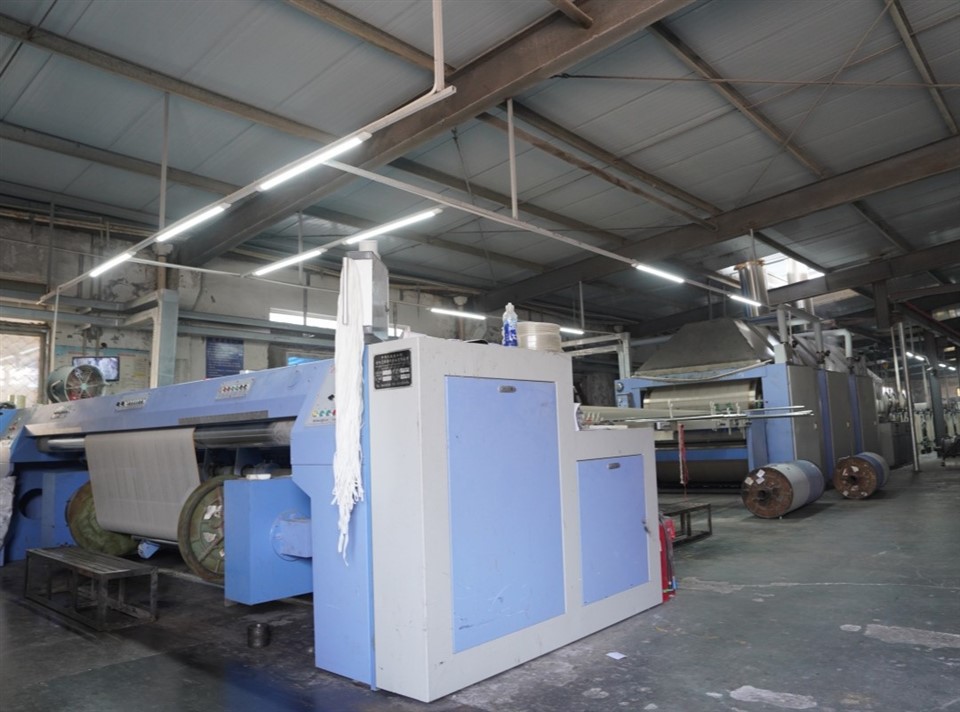

High-Speed Sizing Machine

Efficiency King for Large-Scale Mills

This high-speed sizing machine is made for large textile mills. We know that for big weaving rooms, beam supply speed is key. It sets the whole workshop's output. So we built this machine to be the efficiency king. It keeps beam quality high while pushing output to the max. It works well for cotton, linen, man-made fibers, and blends in large batches. Our customers often ask how we get such high speed without losing quality. We tell them it starts with precision design. This is the High-Speed Sizing Machine that boosts your capacity.

This machine runs at a very wide speed range. You can set it from 100 to 300 meters per minute. The beam can be up to 1.2 meters. One client in Shaoxing used to need two sizing machines. Now they need just one. This one machine does the work of two. The frame is made from heavy steel plates. Key parts are designed with finite element analysis. This ensures the machine stays stable at high speed. The size box is 304 stainless steel. It uses a double-dip and double-squeeze system. The squeeze roller uses imported high-performance polyurethane. Its hardness is Shore 88±2. The pressure can be set from 0 to 50 kN. The size temperature is controlled to ±1℃. This High-Speed Sizing Machine gives you more output with less equipment.

We add smart tools to keep quality high even at high speed. An online system checks the size viscosity. It also adds size automatically. The viscosity control is ±0.5 seconds. The size pickup is even at over 95%. All guide rollers are balanced to G2.5 grade. This means the yarn runs smooth even at high speed. The tension system keeps the change under ±1.5 cN. The machine has an auto beam change system. The screen is 15 inches. You can store 1000 settings inside. It supports data upload and remote service. The beam is straight, with an error under 0.1mm over 1 meter. The winding density error is under 1.8%. This machine meets ISO 11111-1:2016 and CE standards. Its high-speed parts follow ISO 5239. At Jiangsu Global Jingtian, we help you stay cost-competitive. This High-Speed Sizing Machine can feed over 200 high-speed looms. One client cut their energy and labor costs per unit by a large margin.
